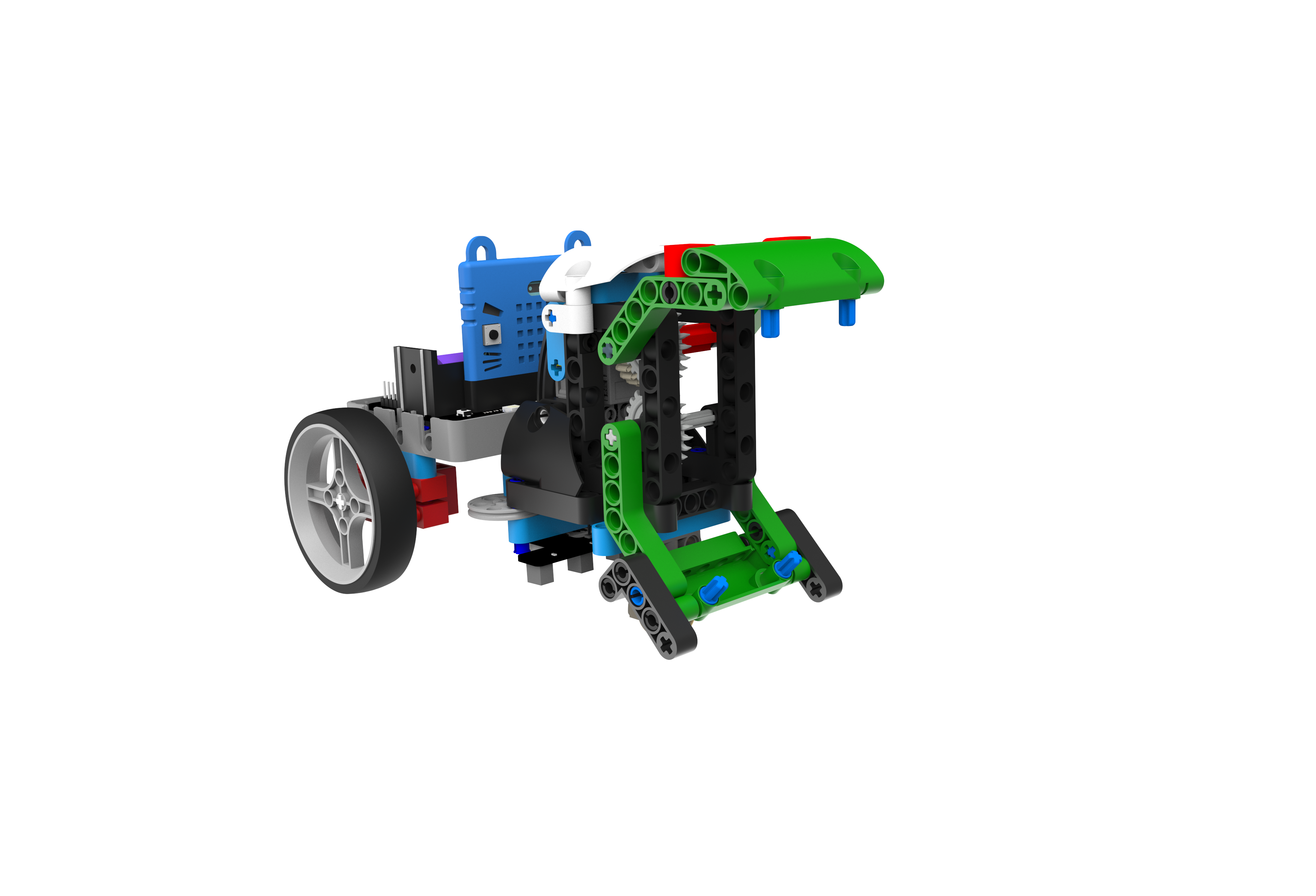

RoadBlock Smasher

Use the big jaws to build roadblocks in the arena and clear the roadblocks built by the opponent.

Building Instructions and Sample Programs​

Building Instructions

RoadBlock Smasher-JoyFrog Controller

參考程式: 路障剋星-microbit搖控

參考程式: 路障剋星-主體

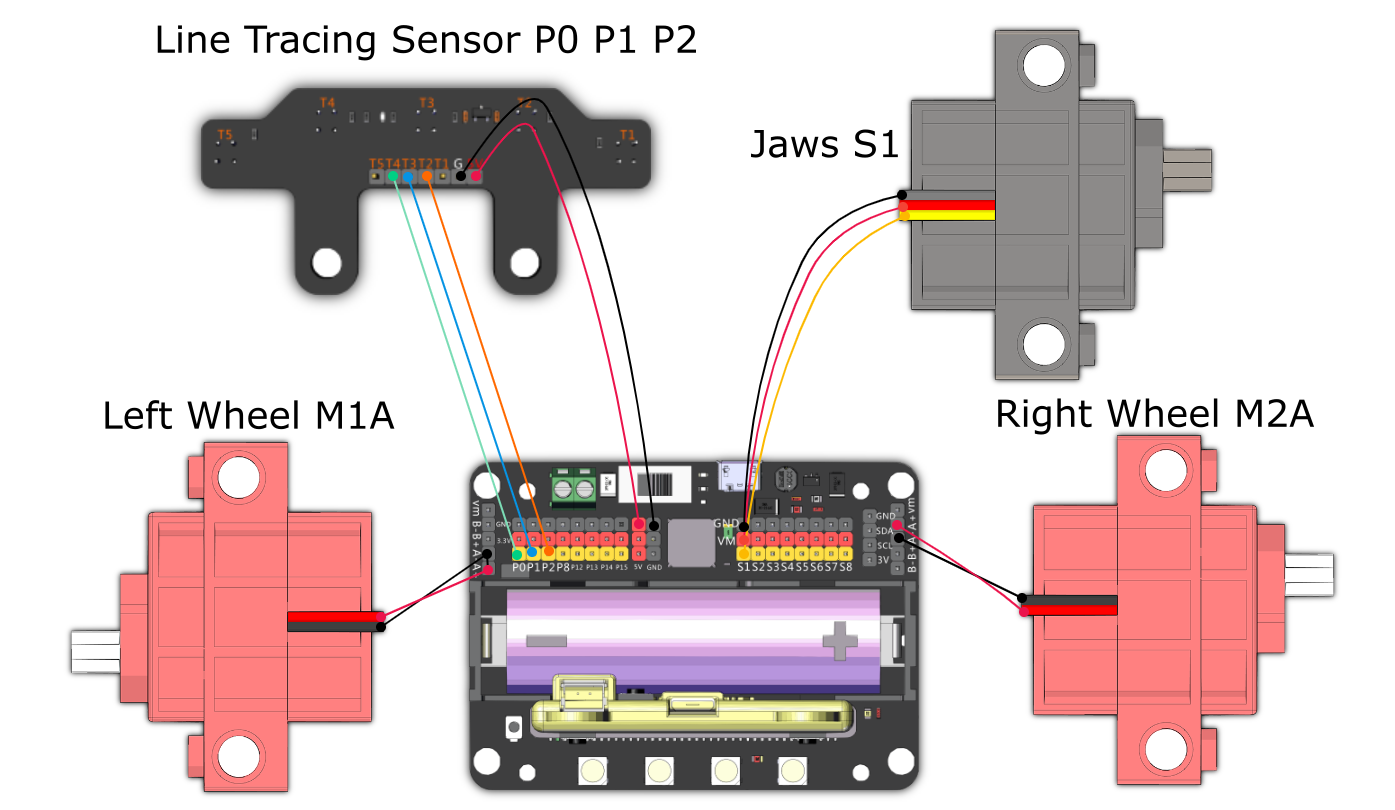

Sample Wiring​

Operating the Robot​

JoyFrog Controller:​

  1. Both the robot and the controller should display 0 when the power is switched no.
  2. Use the joystick for movement, press A to close the jaws, press B to open the jaws.
  3. Press X to switch to line-following mode.

Microbit Controller:​

  1. Both the robot and the controller should display 0 when the power is switched no.
  2. Use the accelerometer for movement, press B to close or open the jaws.
  3. Press B to switch to line-following mode.
